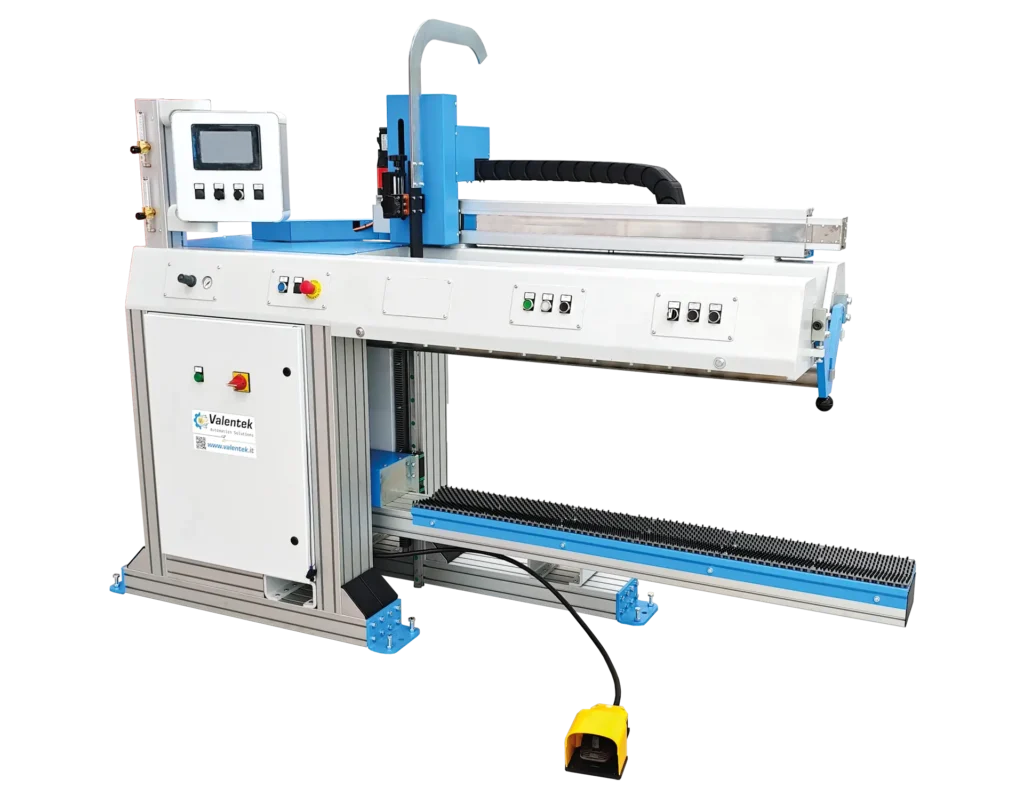

Excellence in Automation for the Perfect Joining of Shells and Sheet Metal
The LS Series is the result of Valentek’s years of expertise in automation process innovation. Specifically engineered for the longitudinal seam welding of cylindrical shells and sheet metal, the LS range represents the ideal standard for companies requiring high precision, total operational reliability, and absolute repeatability—even in the most challenging industrial applications.
Applications:
Food & Chemical Industry (Fermenters): LS Series longitudinal seam welders are ideal for joining stainless steel cylindrical shells. Structural rigidity eliminates vibration, guaranteeing perfectly smooth, porosity-free weld beads that comply with the strictest hygiene standards.
Beverage Kegs & Containers: The LS range automates continuous linear seam welding for hollow bodies and beverage kegs. Millimetric edge alignment dramatically reduces setup times and scrap rates on high-volume production runs.
Heavy Fabrication & Pressure Vessels: Thanks to the Chromium-Zirconium Copper backing bar and bronze alloy clamping fingers, the LS and LSC (Combined) models handle thick metals (up to 15 mm), neutralizing thermal shock and eliminating sheet metal distortion.
Industrial Piping & Ventilation Ducts: LS Standard and LSI (Flat) systems convert flat sheet metal into flawless linear ducts. The automated cycle maintains constant torch-carriage speed, ensuring absolute geometric repeatability.
Quality Engineering
Built for Superior Precision and Zero. Smooth linear motion on hardened, ground recirculating ball screw guides combines with premium-grade mechanical components to ensure flawless operational continuity:
- Chromium-Zirconium Copper Backing Bar: Engineered to withstand extreme thermal stress, equipped with an integrated cooling circuit to preserve bar integrity.
- Bronze Alloy Clamping Fingers: Deliver uniform clamping pressure across the joint, completely preventing sheet metal distortion during the welding cycle.
- Advanced Torch Carriage: Features a vertical pneumatic lift-off system and manual cross-slide for micrometric fine-tuning.
Cooling System
Zero Thermal Shock and Flawless Welds. To ensure flawless weld beads and prevent thermal distortion on thin sheet metal, the LS Series features a high-performance forced cooling circuit:
- Advanced Integrated Cooling: A continuous flow of liquid coolant runs directly inside the Chromium-Zirconium Copper backing bar, preserving its structural integrity and drastically extending its service life.
- Dedicated Cooling Unit: Manages standard thermal regulation across the seam welder to maintain a constant, highly repeatable working temperature.
- Chiller Option for Heavy-Duty Cycles: For intensive production runs with high duty cycles, the system can be equipped with an industrial chiller unit (not supplied by Valentek), eliminating downtime between welding passes.
Download or View the LS Brochure
Standard Models
LS Standard
The entry-level model for flat sheet metal and cylindrical shells, equipped with integrated CNC Control. Automated step-by-step cycle management significantly reduces loading and unloading times while eliminating human error. Total Synchronization: Heavy-duty main beam equipped with a motorized torch carriage for precise, constant speed management across the entire weld pass.
Standard LS Accessories
- Motorized torch carriage
- Riser option (LS2050, LS2550 and LS3050 only)
- Non-magnetic bar support option (LS525, LS1050, LS1550 and LS2050 only)
- Manual Shell Stop
- Backing bar cooling unit
- Heavy-duty cooling chiller
- Top gas trailing shoe
- Bottom backing gas purge
- Cold wire feed unit WF4R
- AVC kit (LS2050, LS2550, LS3050 only)
- LED pointer for pre-tacked shells
Technical features – LS Standard
Click on the button for the table relating to the model
| Models | LS525 | LS1050 |
| Weldable length (mm) | 525 | 1050 |
| External weldable diameters (mm) | 60÷800 | 80÷800 |
| THICKNESSES (mm) | 0,5÷5 | 0,5÷5 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Manual | |
| Semi-automatic cycle function | YES | YES |
| Models | LS1550 | LS2050 |
| Weldable length (mm) | 1550 | 2050 |
| External weldable diameters (mm) | 110÷800 | 150÷800 |
| THICKNESSES (mm) | 0,5÷5 | 1÷8 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Manual | Pneumatic |
| Semi-automatic cycle function | YES | YES |
| Models | LS2550 | LS3050 |
| Weldable length (mm) | 2550 | 3050 |
| External weldable diameters (mm) | 240÷800 | 240÷800 |
| THICKNESSES (mm) | 1÷8 | 1÷8 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Pneumatic | |
| Semi-automatic cycle function | YES | YES |
Specialized Models
LSC (Combined)
Engineered for internal welding of large-diameter shells, with all CNC base features. Automated step-cycles reduce handling time and human error. Total Synchronization: Motorized torch carriage on main beam for constant speed control.
LSC (Combined) Accessories
- Motorized lifter
- Riser option
- Non-magnetic bar support option (LSC1550, LSC2050 only)
- Manual shell stop
- Backing bar cooling unit
- Heavy-duty cooling chiller
- Top gas trailing shoe
- Bottom backing gas purge
- Cold wire feed unit WF4R
- AVC kit
- LED pointer for pre-tacked shells
- External welding shell supports
- Revolver bar support (LSC1550, LSC2050, LSC2550, LSC3050 only)
- Quick-release bar support
Technical features – LSC (Combined)
Click on the button for the table relating to the model
| Models | LSC1550 | LSC2050 |
| Weldable length (mm) | 1550 | 2050 |
| External weldable diameters (mm) | 110÷800 | 150÷800 |
| Internal min weldable diameters (mm) | 1300 | 1300 |
| THICKNESSES (mm) | 1÷8 | 1÷8 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Manual | Pneumatic |
| Semi-automatic cycle function | YES | YES |
| Models | LSC2550 | LSC3050 |
| Weldable length (mm) | 2550 | 3050 |
| External weldable diameters (mm) | 240÷800 | 240÷800 |
| Internal min weldable diameters (mm) | 1300 | 1500 |
| THICKNESSES (mm) | 1÷8 | 2÷15 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Pneumatic | |
| Semi-automatic cycle function | YES | YES |
| Models | LSC4100 | LSC5100 |
| Weldable length (mm) | 4100 | 5100 |
| External weldable diameters (mm) | 350÷1000 | 500÷1000 |
| Internal min weldable diameters (mm) | 1500 | 1500 |
| THICKNESSES (mm) | 2÷15 | 2÷15 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Hook actuation on bar support | Pneumatic | |
| Semi-automatic cycle function | YES | YES |
Other Specialized Models
LSI (Flat)
Optimized for the joining of large-sized flat sheets.
LSV (Vertical)
The ideal solution for welding shells in a vertical position.
LSR (Elevating)
Adjustable loading/unloading height for maximum operational ergonomics.
LSA (Automatic)
Fully integrated cycle: alignment, clamping, welding, and unloading without manual intervention.
