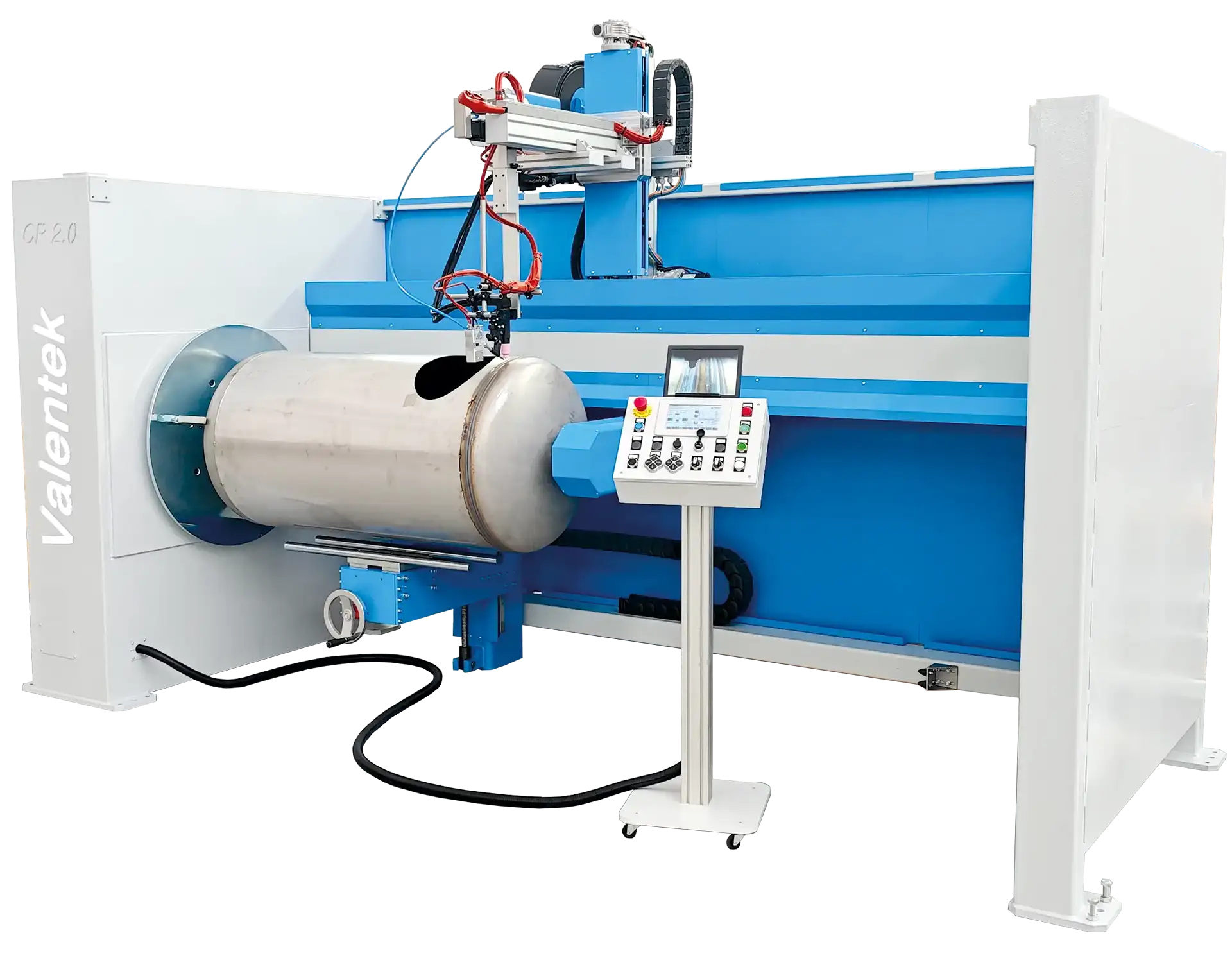

The Cutting-Edge Solution for Automated Circumferential Welding
The Valentek CP 2.0 range represents the gold standard for the automated circumferential welding of cylindrical components, piping, and hollow bodies. Engineered to meet the demands of the most rigorous industrial sectors, the CP series delivers high-integrity structural joints, an impeccable aesthetic finish, and process continuity that roots out defects and inconsistencies typical of manual welding.
Through native integration with MIG/MAG, TIG, PLASMA, and SAW processes, CP 2.0 positioners guarantee superior mechanical strength and millimeter-level repeatability, significantly optimizing cycle times even across high-volume production runs.
Applications:
1. Tanks, Dished Heads & Pressure Vessels: Automated circumferential welding of storage tanks, cylindrical shells, dished ends (domed heads), and industrial pressure vessels.
Technical Advantage: The heavy-duty frame and synchronized rotation control deliver a continuous, uniform, and structurally flawless weld bead along the entire 360° perimeter. Perfectly suited for MIG/MAG, TIG, PLASMA, and SAW processes..
2. Industrial Piping, Flanges & Manifolds: Automated joining of pipes, flanges, couplings/sleeves, and tubular assemblies.
Technical Advantage: Featuring an axially movable tailstock and an optional 3-jaw self-centering chuck, the system ensures rapid clamping and millimeter-accurate alignment-completely eliminating concentricity errors and dramatically reducing setup times..
3. Food, Pharmaceutical & Chemical Sectors: High-precision welding of stainless steel hollow bodies, ducts, sanitary piping, and process tanks.
Technical Advantage: Guarantees aesthetically flawless, highly functional joints with a uniform surface finish and zero porosity, fully meeting the most stringent hygienic and sanitary standards required for process fluid handling.
4. Heavy Fabrication & High-Stress Structural Components: Processing of thick-walled structural joints and heavy mechanical components subject to intense vibration and severe operational loads.
Technical Advantage: With an integrated payload capacity ranging from 300 kg up to 800 kg (on CP DH models), the positioner maintains smooth, vibration-free rotation even under maximum weight capacity.

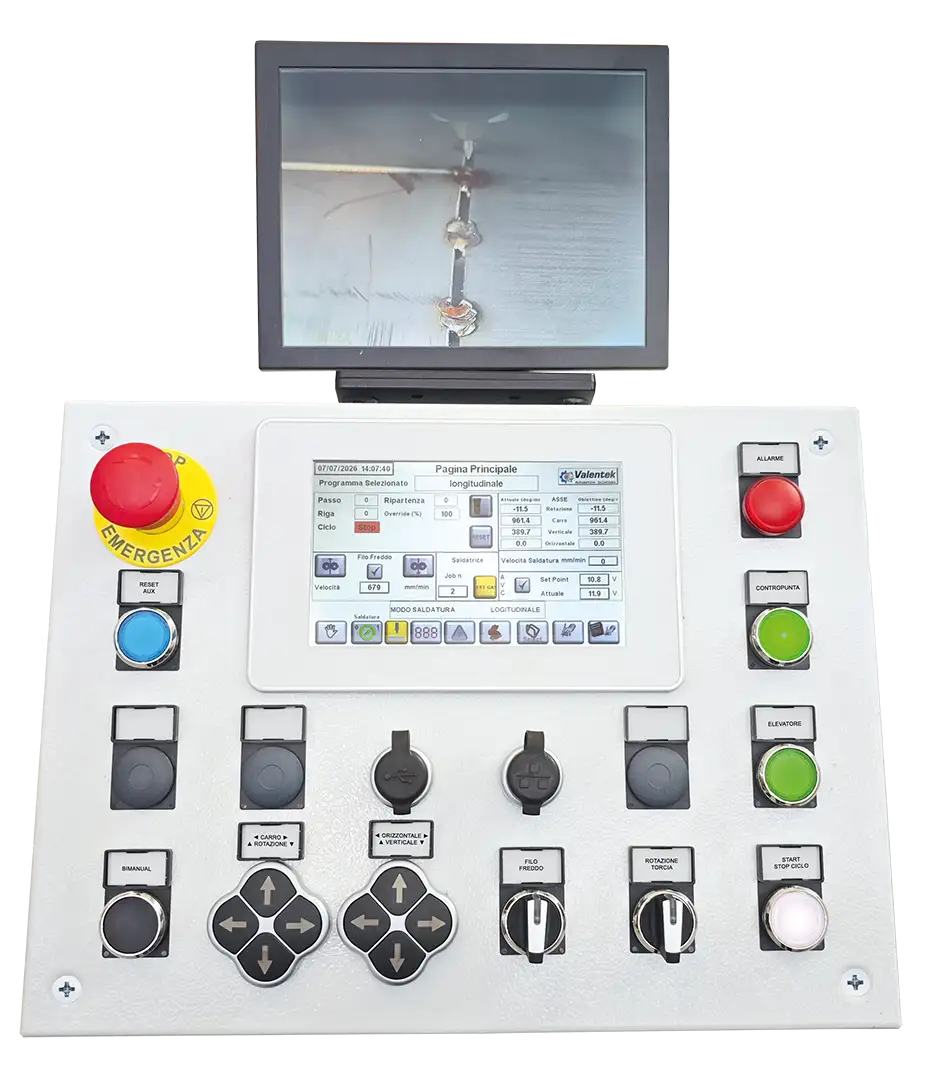

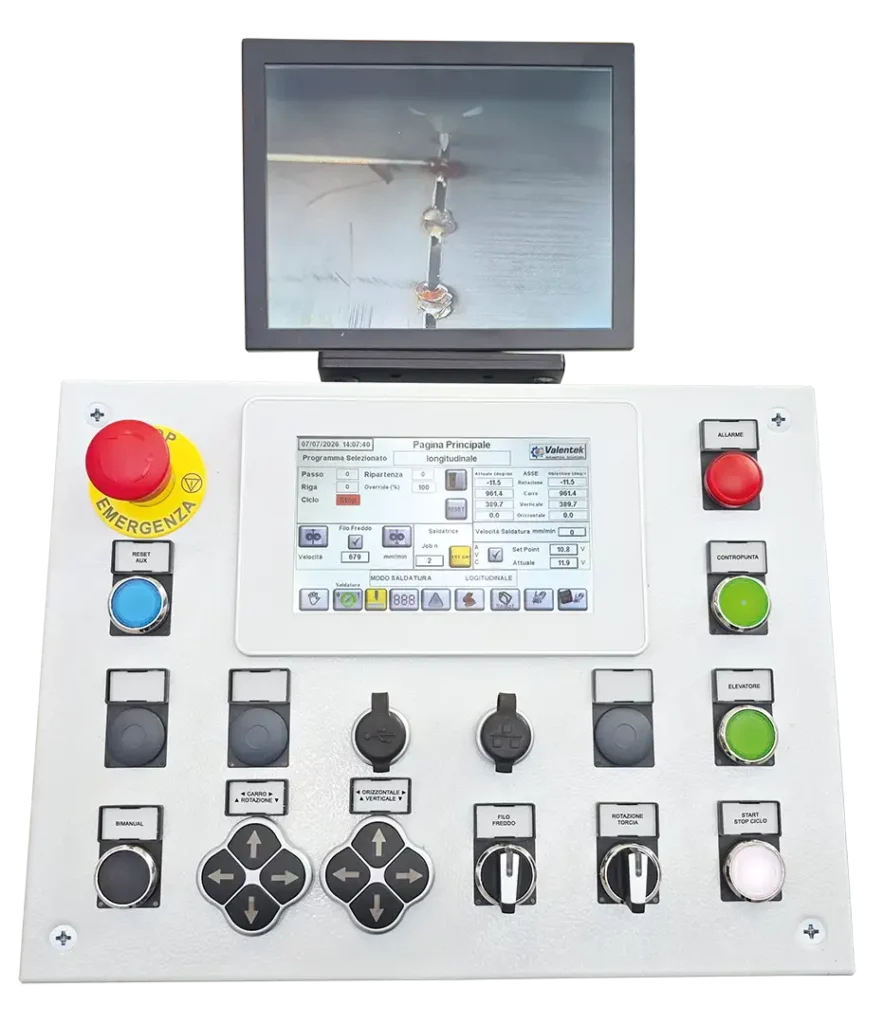

Advanced Control Panel: Millimeter-Accurate Control & Real-Time Vision
The human-machine interface (HMI) of the CP 2.0 series merges the digital intuitiveness of touch controls with the tactile reliability of rapid-action industrial switches, ensuring total and secure management across every phase of the welding cycle:
- Dual-Monitor & HD Vision System: A dedicated upper monitor connects to the process camera for live visual inspection of weld fusion and bead formation, paired with a central Industrial PLC/CNC Touchscreen for complete program and parameter management (speed in mm/min, position offsets, and timing).
- Rapid & Millimeter-Accurate Positioning: Directional pads and dedicated controls allow for micrometric fine-tuning and rapid multi-axis movement (Carriage/Rotation and Horizontal/Vertical), ensuring flawless torch alignment over the joint.
- Workpiece & Torch Rotation Management: Direct selector switches provide immediate control over the rotation of the workpiece cylinder and the 90° swiveling/rotation of the torch axis.
- Best-in-Class Ergonomics & Safety: An industrial control station equipped with high-response physical switches (two-hand safety start, emergency stop button, tailstock actuation, lifter/elevator, and cold wire feed) alongside an integrated USB interface for program storage and data tracking.
| Panel Component | Technical Function | Operational Benefit for the Workshop |
| Upper Visual Monitor | Real-time video feedback of the welding process. | The operator monitors the weld pool in complete safety, eliminating eye fatigue. |
| 7″ CNC Touchscreen | Configuration of position offsets, welding speed (mm/min), jobs, and welding recipes. | Zero setup time, rapid production changeover, and complete lot repeatability. |
| Dual Directional Pads | Micrometric manual positioning for Horizontal/Vertical and Carriage/Rotation axes. | Millimeter-accurate torch alignment prior to initiating the automated cycle. |
| DEDICATED Physical Selectors | Direct control over Cold Wire, Torch Rotation (90°), Tailstock, and Lifter. | Instant actuation without navigating through touchscreen sub-menus. |
| Front USB Port | Import/Export of welding programs, job recipes, and weld logging reports. | Ready for Industry 4.0 / 5.0 data tracking and factory interconnectivity. |
Testing in Action: CP 2.0 Field-Verified Precision
From millimetric calibration to a flawless weld bead: direct technical supervision for zero-defect results.
In cutting-edge industrial welding, specifications on paper only matter when proven in practice. In this video, we take you inside our workshop during the final stages of setup, fine calibration, and live testing of the CP 2.0 circular positioner.
Direct oversight by our founder during machine fine-tuning embodies the Valentek philosophy: over 25 years of engineering heritage rigorously applied to every single machine. From millimetric torch axis adjustment to precise rotational speed control, every detail is tested to guarantee maximum stability and absolute joint repeatability.
Download or View the CP 2.0 Brochure
Standard Models
CP Standard: The Benchmark for Precision Circumferential Welding
The CP Standard series represents the benchmark configuration for the automated circular joint welding of pipes, flanges, hollow bodies, and tanks. Engineered to guarantee maximum torch stability and perfectly concentric workpiece rotation, it eliminates weld defects and drastically reduces setup downtime between different production batches.
- Axially Movable Upper Beam: The welding head glides axially along the beam, enabling micrometric torch alignment over the joint prior to initiating the automated cycle.
- Motorized Rotating Headstock: Delivers smooth, constant rotational torque—eliminating micro-vibrations to produce uniform weld beads along the entire 360° perimeter.
- Axially Movable Tailstock: Enables rapid workpiece positioning and clamping, effortlessly adjusting to varying processing lengths.

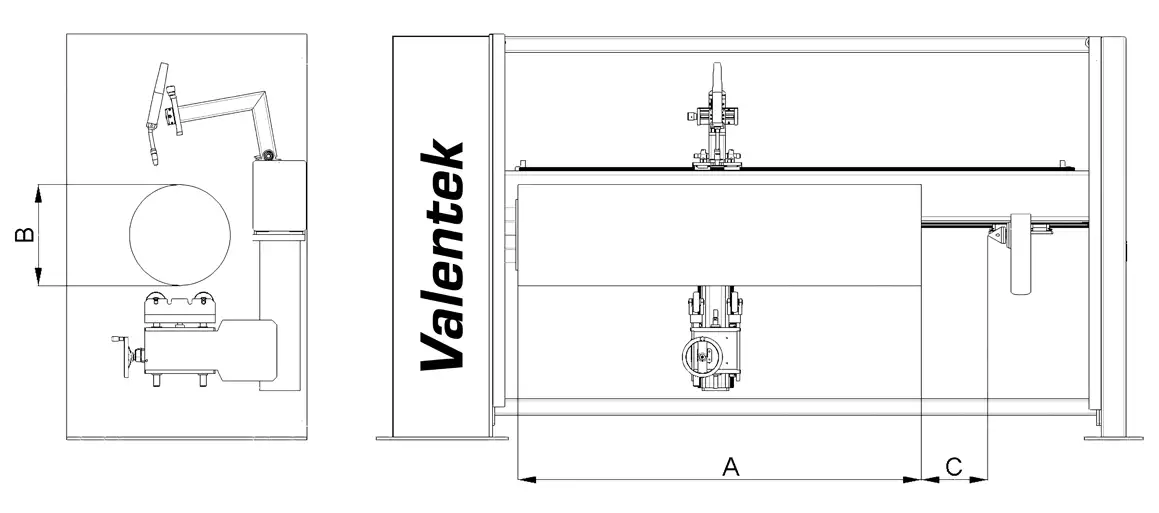

Technical features CP 2.0 Standard
Click on the button for the table relating to the model
| Model | CP500 | CP1000 |
| A) Useful welding length (mm) | 500 | 1000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 150 | 150 |
| Load capacity (kg) | 300 | 300 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Model | CP1500 | CP2000 |
| A) Useful welding length (mm) | 1500 | 2000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 150 | 200 |
| Load capacity (kg) | 300 | 400 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Model | CP2500 | CP3000 |
| A) Useful welding length (mm) | 2500 | 3000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 200 | 200 |
| Load capacity (kg) | 400 | 500 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
CP 2.0 Standard Accessories
- Adjustable lift with handwheel and pneumatic release
- Adjustable double lift with handwheels and pneumatic release (not applicable to CP500)
- Second torch carriage
- Motorised vertical slide, 300 mm stroke
- Motorised horizontal slide, 200 mm stroke
- Motorised torch carriage movement
- 3-jaw self-centring chuck *
- Upper welding protection shoe
- WF4R cold wire kit
- 2-axis probe tracker
- 2-axis laser tracker
- AVC kit
- 50 mm electronic oscillator
- 1-head flux recovery system
- 2-head flux recovery system
- LED pointer
* Note: fitting the spindle reduces the effective length of the system
Specialized Models
CP DH (Double Head): Dual-Head Configuration for Complex Components
The CP DH (Double Head) version is the high-performance engineering evolution designed to handle oversized components, extra-long tanks, and non-standard geometries. The dual movable head structure guarantees maximum operational flexibility and superior mechanical strength, even under heavy loads.
- Dual Movable Heads (Motorized + Idler): Both heads slide axially along the bed to facilitate the alignment and centering of long or articulated workpieces.
- Fixed Central Lifter: An integrated device that assists the operator during loading, intermediate support, and unloading phases, ensuring total workplace safety.
- Extended-Reach Beam: The motorized welding carriage traverses the entire length of the beam to easily reach any joint location along the work area.

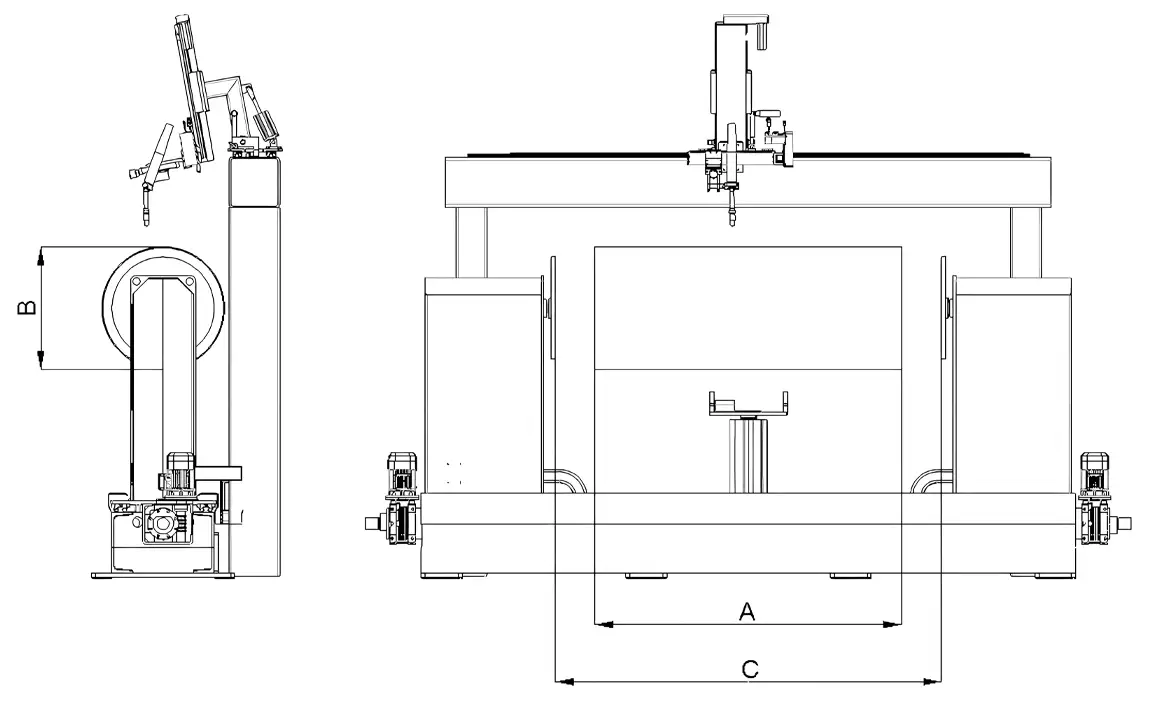

Technical features CP DH (Double Head)
Click on the button for the table relating to the model
| Model | CP1500DH | CP2000DH |
| A) Useful welding length (mm) | 1500 | 2000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 1900 | 2400 |
| Load capacity (kg) | 300 | 400 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Model | CP3000DH | CP4000DH |
| A) Useful welding length (mm) | 3000 | 4000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 3400 | 4400 |
| Load capacity (kg) | 500 | 800 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
| Modelli | CP5000DH | CP6000DH |
| A) Useful welding length (mm) | 5000 | 6000 |
| B) External weldable diameters (mm) | 50÷600 | |
| C) Tailstock release stroke (mm) | 5400 | 6400 |
| Load capacity (kg) | 800 | 800 |
| Applicable welding processes | MIG/MAG-TIG-PLASMA-SAW | |
CP DH (Double Head) Accessories
- Second torch carriage
- Motorised vertical slide, stroke 300 mm
- Motorised horizontal slide, stroke 200 mm
- Motorised torch carriage movement
- 3-jaw self-centring chuck *
- Upper welding protection shoe
- WF4R cold wire kit
- 2-axis probe tracker
- 2-axis laser tracker
- AVC kit
- 50 mm electronic oscillator
- 1-head flux recovery system
- 2-head flux recovery system
- LED pointer
* Note: fitting the spindle reduces the effective length of the system
